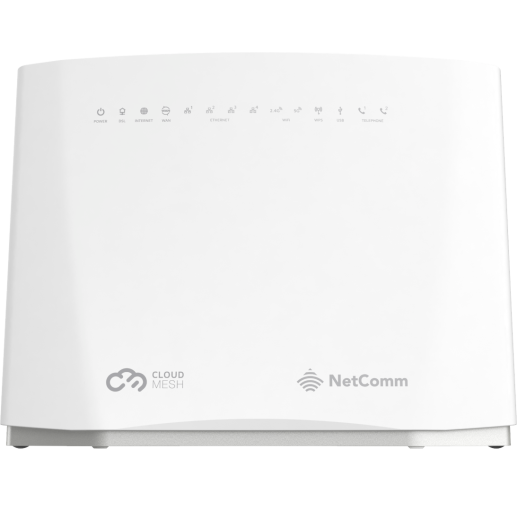

Wi-Fi 6 + VDSLNetComm NF20MESH
A Wi-Fi 6 modem router with built-in VDSL, Gigabit Ethernet and two phone ports. Expand coverage with compatible CloudMesh satellites.
- Dual-band 2.4 GHz and 5 GHz Wi-Fi 6
- Built-in VDSL2 / ADSL2+ modem
- One Gigabit WAN and four Gigabit LAN ports
- Two VoIP phone ports
- CloudMesh expansion with NS-02 satellites
$200.00 AUD · Single Unit
Contact Customer Care on Option 1 to confirm availability and delivery.
The Details
Technical Specifications
| Device Type | CloudMesh modem router / gateway |
|---|---|
| Wi-Fi Standard | Wi-Fi 6; 802.11a/b/g/n/ac/ax |
| Wireless Bands | 2.4 GHz and 5 GHz, concurrent |
| Published Radio Rates | 2.4 GHz: up to 574 Mbps; 5 GHz: up to 1801 Mbps (Rev 7) |
| Ethernet WAN | 1 × 10/100/1000 Mbps RJ45 |
| Ethernet LAN | 4 × 10/100/1000 Mbps RJ45 |
| DSL | 1 × RJ11; VDSL2 / ADSL2+; VDSL profiles through 35b; G.INP |
| Voice | 2 × RJ11 VoIP; SIP 2.0; G.711, G.723, G.726 |
| USB | 1 × USB 3.0 for storage; file sharing / DLNA |
| Mesh Expansion | NetComm NS-02 CloudMesh satellites (separate) |
| WAN Connection Modes | DHCP (IPoE), PPPoE, Static IP; bridge mode |
| Routing & Security | Firewall, MAC filtering, DMZ, static routes, RIP v1/v2 |
| Management | Browser interface; TR-069, QoS, SNMP, UPnP, syslog, backup / restore |
| Power | 12 V DC / 2 A |
| Dimensions | 230 (L) × 180 (H) × 70 (W) mm |
| Weight | 555 g |
| Operating Conditions | 0–40°C; 10–95% humidity, non-condensing |
| Compliance | RCM; NZ Telepermit |
| Manufacturer Box Contents | Gateway, power adapter, 2 × Ethernet cables, phone cable, documentation |
Connection Setup
Use the built-in VDSL modem for NBN FTTN or FTTB. For FTTP, FTTC, HFC or Fixed Wireless, connect the Ethernet WAN port to the NBN connection equipment. Keep any required NBN equipment in place.
Carbon NBN Plans, ABB Direct NBN Plans and OptiComm use IPoE (Automatic IP / DHCP). Neoloop uses PPPoE with the username and password emailed on activation. A Static IP service does not mean you should enter a manual WAN address.
Read the Network Configuration Statement
Good to Know
Gigabit Ethernet ports cannot carry a full multi-gigabit internet connection. This model has no integrated cellular modem; its documented USB function is storage, not a promise of USB mobile backup.
The radio rates above reproduce the current manufacturer Rev 7 figures; they are not a guaranteed internet speed or an AX-class claim. For speed-tier suitability, contact us before ordering.
Advertised wireless figures are theoretical radio rates, not guaranteed internet or single-device speeds. Actual performance depends on the service, connected devices, placement, interference and building materials. Satellites and voice or mobile services are separate unless explicitly included in your order.
Technical support is by phone only: 1800 10 10 50, Option 3. Technical support is not provided over chat or email.
Manufacturer Information
- Official NF20MESH Downloads & Manuals (opens in a new tab)
- Full NF20MESH Spec Sheet (PDF) (opens in a new tab)
Manufacturer specifications checked 8 October 2026. Specifications and firmware features may change; check with us before upgrading ISP-supplied firmware.
