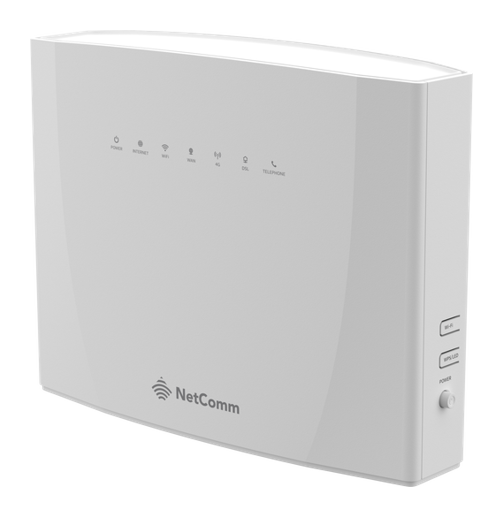

Wi-Fi 6 + 4G BackupNetComm NL20MESH
A hybrid Wi-Fi 6 modem router with integrated 4G LTE Cat 6 backup, VDSL and Gigabit Ethernet. A compatible active SIM and mobile service are required for cellular connectivity.
- Integrated 4G LTE Cat 6 modem
- Automatic fixed-line / 4G failover
- Dual-band Wi-Fi 6 and CloudMesh support
- VDSL2 / ADSL2+ plus Gigabit WAN
- Four Gigabit LAN ports and one VoIP port
$300.00 AUD · Single Unit
Contact Customer Care on Option 1 to confirm availability and delivery.
The Details
Technical Specifications
| Device Type | CloudMesh hybrid modem router / gateway |
|---|---|
| Wi-Fi Standard | Wi-Fi 6; 802.11a/b/g/n/ac/ax |
| Wireless Bands | 2.4 GHz and 5 GHz, concurrent |
| Cellular Modem | Integrated 4G LTE Cat 6; SIM slot |
| Cellular Radio Maximums | 300 Mbps download / 50 Mbps upload |
| LTE Bands | FDD: B1 / B3 / B5 / B7 / B8 / B28; TDD: B40 |
| Mobile Backup | Automatic 4G failover and fixed-line recovery; active compatible SIM / plan required |
| Ethernet WAN | 1 × 10/100/1000 Mbps RJ45 |
| Ethernet LAN | 4 × 10/100/1000 Mbps RJ45 |
| DSL | VDSL2 / ADSL2+; profiles through 35b; G.INP |
| Voice | 1 × RJ11 VoIP; SIP 2.0; G.711, G.723, G.726 |
| USB | 1 × USB storage port; NAS file sharing (User Guide v1.04) |
| Mesh Expansion | NetComm NS-02 CloudMesh satellites (separate) |
| WAN Connection Modes | DHCP (IPoE), PPPoE, Static IP; bridge mode |
| Routing & Security | Firewall, MAC filtering, DMZ, static routes, RIP v1/v2 |
| Management | Browser interface; TR-069, QoS, SNMP, UPnP, syslog, backup / restore |
| Power | 12 V DC / 2 A |
| Dimensions | 266 (L) × 74 (W) × 207.5 (H) mm |
| Weight | 835 g |
| Operating Conditions | 0–40°C; 10–95% humidity, non-condensing |
| Compliance | RCM; NZ Telepermit |
Connection Setup
Use the built-in VDSL modem for NBN FTTN or FTTB. For FTTP, FTTC, HFC or Fixed Wireless, connect the Ethernet WAN port to the NBN connection equipment. Keep any required NBN equipment in place.
Carbon NBN Plans, ABB Direct NBN Plans and OptiComm use IPoE (Automatic IP / DHCP). Neoloop uses PPPoE with the username and password emailed on activation. A Static IP service does not mean you should enter a manual WAN address.
Read the Network Configuration Statement
Good to Know
This is a 4G LTE model, not a 5G gateway. Mobile backup is not a bundled mobile plan: SIM compatibility, coverage, APN configuration and mobile charges must be confirmed with the service provider.
The Ethernet ports are Gigabit, so they cannot carry a full multi-gigabit internet connection. Specifications shown are for the manufacturer’s NL20MESH-01 Australian support model.
Advertised wireless figures are theoretical radio rates, not guaranteed internet or single-device speeds. Actual performance depends on the service, connected devices, placement, interference and building materials. Satellites and voice or mobile services are separate unless explicitly included in your order.
Technical support is by phone only: 1800 10 10 50, Option 3. Technical support is not provided over chat or email.
Manufacturer Information
- Official NL20MESH Downloads & Manuals (opens in a new tab)
- Full NL20MESH Spec Sheet (PDF) (opens in a new tab)
- NL20MESH User Guide (PDF) (opens in a new tab)
Manufacturer specifications checked 8 October 2026. Specifications and firmware features may change; check with us before upgrading ISP-supplied firmware.
